Topic: My Bird is almost done
|
393Bird
Gearhead Posts: 134
From: Clarksville Tn.
Registered: Feb 2004
|
posted 02-16-2004 01:29 PM

I have been transforming my 93 Bird from a daily driver, to a weekend play car for the last 8 months. I can see the light at the end of the tunnel at last. I still have a ton of things to do, but should have it ready to fire up in about 1 month. Here is the project:
http://www.qsl.net/wd4ngb/birdwork.htm I tried to cover every area as I was doing it. I hope the information will be useful for others.
------------------
1993 Tbird
393 stroker, 3500 RPM converter
Lentech Street Terminator Plus
IP: Logged |
KULTULZ
Gearhead Posts: 800
From: Rockville, MD
Registered: Oct 2002
|
posted 02-16-2004 01:55 PM
 I'll say one thing for you and the BIRD...Both of you have very good taste in components... Beautiful Work!
IP: Logged |
Moneymaker
Administrator Posts: 26513
From: Lyons, IL, USA
Registered: May 99
|
posted 02-16-2004 01:57 PM
Pretty slick.
Why the vaccum advance distributor?  ------------------
Alex Denysenko
Co-Administrator and Moderator NHRA/IHRA/SRA member and licensed Superstock driver
MCA member# 53321
NHRA and IHRA SS/LA & SS/MA National Record Holder '00,'01,'02,'03,& '04
First SS/MA in the TENS!
IHRA division 5 Superstock Champion
Fleet of FoMoCo products including 88 ASC McLaren Mustang #28 The Barry of BarrysGrrl Quote #1: "I never met a magazine mechanic I liked."
Quote #2: "Make sure brain is in gear before engaging mouth!"
Quote #3: "If you can't run with the big dogs, stay on the porch!"
www.moneymakerracing.com
IP: Logged |
393Bird
Gearhead Posts: 134
From: Clarksville Tn.
Registered: Feb 2004
|
posted 02-16-2004 02:50 PM
Thanks.... The vac advance will be removed before it is fired. I just got my MSD Digital 6 box and coil for it today. I may run it in the full advanced, with start retard. Thats still about 1-2 months away. I am starting to run the fuel lines and secure the fuel cell this week.------------------
1993 Tbird
393 stroker, 3500 RPM converter
Lentech Street Terminator Plus
IP: Logged |
SteveLaRiviere
Administrator Posts: 43791
From: Saco, Maine
Registered: May 99
|
posted 02-16-2004 06:07 PM
Looks good!  ------------------
'70 Mustang Mach 1 351C 4V/FMX/3.25 Open
'70 Mustang Convertible 250 I6/3 speed/2.79 Open
'72 Mustang Sprint Hardtop 351C 4V/FMX/4.30 Trac Loc
'94 F-150 XL 5.8L/E4OD/3.55 Limited Slip
IP: Logged |
Moneymaker
Administrator Posts: 26513
From: Lyons, IL, USA
Registered: May 99
|
posted 02-17-2004 01:11 PM
Shouldn't need the retard with a good starter.
Even with a locked advance.------------------
Alex Denysenko
Co-Administrator and Moderator NHRA/IHRA/SRA member and licensed Superstock driver
MCA member# 53321
NHRA and IHRA SS/LA & SS/MA National Record Holder '00,'01,'02,'03,& '04
First SS/MA in the TENS!
IHRA division 5 Superstock Champion
Fleet of FoMoCo products including 88 ASC McLaren Mustang #28 The Barry of BarrysGrrl Quote #1: "I never met a magazine mechanic I liked."
Quote #2: "Make sure brain is in gear before engaging mouth!"
Quote #3: "If you can't run with the big dogs, stay on the porch!"
www.moneymakerracing.com
IP: Logged |
393Bird
Gearhead Posts: 134
From: Clarksville Tn.
Registered: Feb 2004
|
posted 02-19-2004 09:06 AM

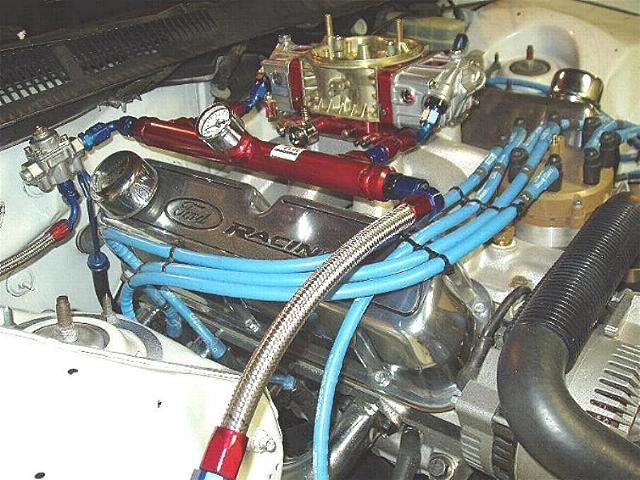

I finished running the new fuel lines from the rear to the shock towers yesterday. I have to connect the return regulater on the back of the fuel log, then run the AN8 lines to the log.  Next is the MSD ignition box and coil. Getting close...
------------------
1993 Tbird
393 stroker, 3500 RPM converter
Lentech Street Terminator Plus
http://www.qsl.net/wd4ngb/birdwork.htm
IP: Logged |
Moneymaker
Administrator Posts: 26513
From: Lyons, IL, USA
Registered: May 99
|
posted 02-19-2004 10:14 AM
That fuel log is bigger than the entire carb on MM.  ------------------
Alex Denysenko
Co-Administrator and Moderator NHRA/IHRA/SRA member and licensed Superstock driver
MCA member# 53321
NHRA and IHRA SS/LA & SS/MA National Record Holder '00,'01,'02,'03,& '04
First SS/MA in the TENS!
IHRA division 5 Superstock Champion
Fleet of FoMoCo products including 88 ASC McLaren Mustang #28 The Barry of BarrysGrrl Quote #1: "I never met a magazine mechanic I liked."
Quote #2: "Make sure brain is in gear before engaging mouth!"
Quote #3: "If you can't run with the big dogs, stay on the porch!"
www.moneymakerracing.com
IP: Logged |
393Bird
Gearhead Posts: 134
From: Clarksville Tn.
Registered: Feb 2004
|
posted 02-29-2004 07:37 PM
Thanks for the compliments. I started taking pictures of the project just so I could look over things that I was going to do next, and think of all the ways I could do it, then decide how I was going to attack it. As other Bird guys heard about what I was doing, they asked me if I could post a picture or two on the net of it to see. Well, it has turned into full detailing of the project.I am not a pro, or have a lot of money. I am a Retired 62 year old ex Army mechanic. Spent 22 years in the Army, then worked in a local hospital in there Maintenance Dept. So you can see, I am far from having lots of money, just lots time. My play money fund is about bottomed out, so I don't know if I will finish it, and have it ready for the strip this year or not. If not, I will still have fun with it, and take it to some shows. ------------------
1993 Tbird
393 stroker, 3500 RPM converter
Lentech Street Terminator Plus
http://www.qsl.net/wd4ngb/birdwork.htm
IP: Logged |
N266fords
Gearhead Posts: 1586
From: Spokane ,WA USA
Registered: Apr 2003
|
posted 03-05-2004 02:08 AM
Nice Layout and great attn to detail. I love the work. Bruce
IP: Logged |
393Bird
Gearhead Posts: 134
From: Clarksville Tn.
Registered: Feb 2004
|
posted 03-05-2004 06:10 AM
Thanks. Since it is not a daily driver, I have the time to do it as I wish, and do not have to rush it.
------------------
1993 Tbird
393 stroker, 3500 RPM converter
Lentech Street Terminator Plus
http://www.qsl.net/wd4ngb/birdwork.htm
[img]http://www.qsl.net/wd4ngb/bird.jpg[/img]
