Author
|
Topic: Carb Jets with Victor Jr.
|
kcode
Gearhead Posts: 3226
From: alvaton,ky,usa Suburb of Bowling Green, M&M #79, MCA #29208
Registered: Jun 99
|
posted 02-22-2004 11:22 AM

I found some lost ambition yesterday and got around to taking RPM intake off the 347. With the RPM intake the carb mixture was about perfect, plug color good.Before I put it back together with the Victor Jr intake, what should I expect from the Carb. Should I change jets, up or down? With the carb sitting on the bench its a helluva lot easier to make changes now. Any opinions???? ------------------
Mike Golliver
MCA Gold Card Judge-Modifieds
65 Kcode coupe 347 stroker modified 5-speed MCA Retired
66 convertible-3 dueces and a 5-speed with a 289
89 T-Bird Super coupe
01 Mustang GT Convt
IP: Logged |
Moneymaker
Administrator Posts: 26811
From: Lyons, IL, USA
Registered: May 99
|
posted 02-22-2004 11:39 AM
Carb?------------------
Alex Denysenko
Co-Administrator and Moderator NHRA/IHRA/SRA member and licensed Superstock driver
MCA member# 53321
NHRA and IHRA SS/LA & SS/MA National Record Holder '00,'01,'02,'03,& '04
First SS/MA in the TENS!
IHRA division 5 Superstock Champion
Fleet of FoMoCo products including 88 ASC McLaren Mustang #28 The Barry of BarrysGrrl Quote #1: "I never met a magazine mechanic I liked."
Quote #2: "Make sure brain is in gear before engaging mouth!"
Quote #3: "If you can't run with the big dogs, stay on the porch!"
www.moneymakerracing.com
IP: Logged |
kcode
Gearhead Posts: 3226
From: alvaton,ky,usa Suburb of Bowling Green, M&M #79, MCA #29208
Registered: Jun 99
|
posted 02-22-2004 07:28 PM
A Quick Fuel Tech 750 DP (Holley HP)Mike
IP: Logged |
Moneymaker
Administrator Posts: 26811
From: Lyons, IL, USA
Registered: May 99
|
posted 02-22-2004 07:55 PM
With power valves, about 66 F and 70 R would be a good start.
Add 5 sizes without power valves.------------------
Alex Denysenko
Co-Administrator and Moderator NHRA/IHRA/SRA member and licensed Superstock driver
MCA member# 53321
NHRA and IHRA SS/LA & SS/MA National Record Holder '00,'01,'02,'03,& '04
First SS/MA in the TENS!
IHRA division 5 Superstock Champion
Fleet of FoMoCo products including 88 ASC McLaren Mustang #28 The Barry of BarrysGrrl Quote #1: "I never met a magazine mechanic I liked."
Quote #2: "Make sure brain is in gear before engaging mouth!"
Quote #3: "If you can't run with the big dogs, stay on the porch!"
www.moneymakerracing.com
IP: Logged |
CHIPSBAD67
Gearhead Posts: 396
From: LOU,KY;USA
Registered: Sep 2003
|
posted 02-22-2004 10:18 PM
thinking about switching to the vic jr. intake my dang self. i think im running 75/76 jets (no pv) right now with my rpm/holley 650 and it might be a tad lean. best run is usually right off the trailer when driver is cold and stiff. nights get cooler but also more humid, car slows just a tad even though im shifting my a$$ off. figured if i went single plane id wanna jet even fatter since the car would think it had a bigger carb and would also get a weaker signal to meter the fuel. all this theory crap is in my head. i bet your really gonna see more improvement since you got that stroker.------------------
306, 4speed, 4.11's....best 1/8 mile 7.58 at 92mph with 1.72 60ft. PUMP GAS/NO ADDERS/STREET TIRES
IP: Logged |
V8 Thumper
Gearhead Posts: 4638
From: Phoenix, Arizona
Registered: Dec 2001
|
posted 02-22-2004 10:26 PM
66's and 70's?  Not trying to be a smartass, but why so much leaner with a single plane? Mine is happiest jetted 74/82, but that's a dual plane Air Gap... big difference  ------------------
1965 GT coupe, 333ci aluminum headed/solid cammed stroker, four speed, 3.70:1 9" All Blue Oval, no blue bottle
http://mustangsandmore.50megs.com/V8Thumper.html
IP: Logged |
Moneymaker
Administrator Posts: 26811
From: Lyons, IL, USA
Registered: May 99
|
posted 02-22-2004 10:34 PM
quote:
Originally posted by V8 Thumper:
66's and 70's? Not trying to be a smartass, but why so much leaner with a single plane? Mine is happiest jetted 74/82, but that's a dual plane Air Gap... big difference
He has a much better flowing carb Todd. ------------------
Alex Denysenko
Co-Administrator and Moderator NHRA/IHRA/SRA member and licensed Superstock driver
MCA member# 53321
NHRA and IHRA SS/LA & SS/MA National Record Holder '00,'01,'02,'03,& '04
First SS/MA in the TENS!
IHRA division 5 Superstock Champion
Fleet of FoMoCo products including 88 ASC McLaren Mustang #28 The Barry of BarrysGrrl Quote #1: "I never met a magazine mechanic I liked."
Quote #2: "Make sure brain is in gear before engaging mouth!"
Quote #3: "If you can't run with the big dogs, stay on the porch!"
www.moneymakerracing.com
IP: Logged |
393Bird
Gearhead Posts: 150
From: Clarksville Tn.
Registered: Feb 2004
|
posted 02-23-2004 09:53 AM

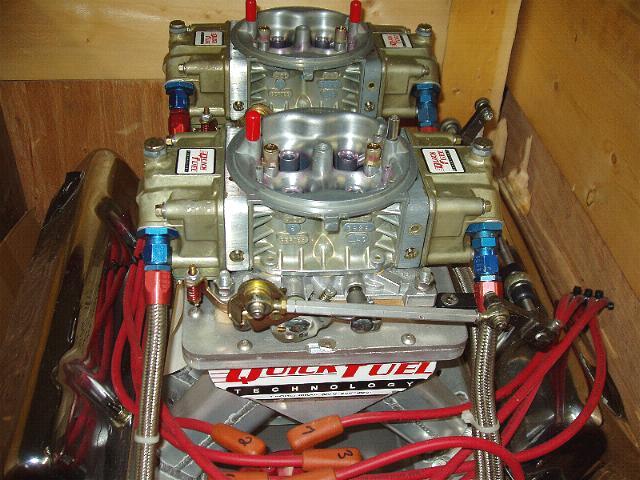

I Love Quickfuel Carbs...  I wish this was mine. It's the backup engine for Marvin's Roadster at Quickfuel. I tried to convince him it should be run some this season, in my Bird.  ------------------
1993 Tbird
393 stroker, 3500 RPM converter
Lentech Street Terminator Plus
http://www.qsl.net/wd4ngb/birdwork.htm
IP: Logged |
kcode
Gearhead Posts: 3226
From: alvaton,ky,usa Suburb of Bowling Green, M&M #79, MCA #29208
Registered: Jun 99
|
posted 02-24-2004 09:27 PM
Now I'm confused. I have 72 primary and 82 secondary now, so with a single plane intake, I should jet down. I don't have enough hood clearance to put a four hole spacer under the carb, so it is sitting directly on intake pad. Will I have mess around with the air bleeds? I'll definitely have to change float levels. Hopefully, I'll get around to running the motor this weekend. Mike
IP: Logged |
